Install the transmission bearing support

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2022 BMW M340i xDrive, 2022 BMW M340i, 2022 BMW 330i xDrive, 2022 BMW 330i, and 2022 BMW 330e xDrive. However, it is still accessible from the selected car via links, so may be relevant.

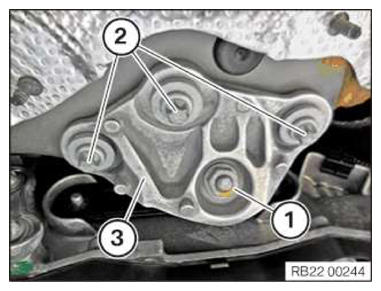

Install transmission bearing support holder (3).

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATION

Transmission bearing support to body
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Rubber mount to transmission bearing support
M8	tightening torque	19 Nm

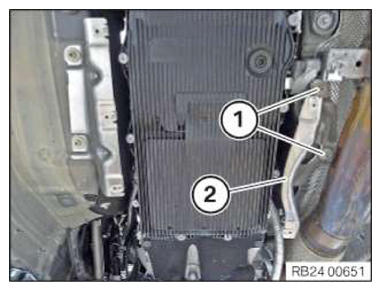

Install the retaining plate (2).

Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATION

Retaining plates for vehicle underbody cover
Sheet metal nut/plastic nut Replace nuts.	tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

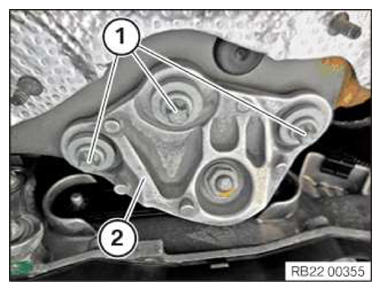

Position transmission bearing support (2).

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Transmission bearing support to body
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Position transmission bearing support (2).
Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Transmission bearing support to body
M8	Tightening torque 19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install transmission bearing support holder (3).

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATION

Transmission bearing support to body
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Rubber mount to transmission bearing support
M8	Tightening torque	19 Nm
