Install B-pillar trim panel
- Check the clips (1)
for damage and replace if necessary.

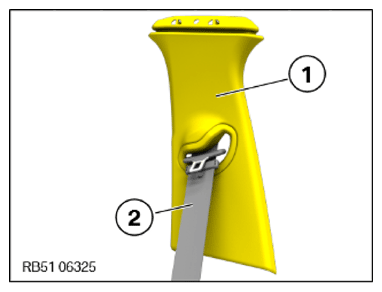

- Guide upper seat belt (2)
into B-pillar trim panel (1)
.
- Insert the B-pillar trim panel (1) in the guides (2) and below the lip of edge protection at the front and rear.
- Clip the B-pillar trim panel in (1)
with the clips (3)
.
- Adjust the front seat completely to the front and top.
- Insert the end fitting (2) .
- Replace the screw (1)
.
Parts: Screw
- Tighten down screw (1)
.TIGHTENING TORQUE SPECIFICATION
Seat belt strap fitting to seat mechanism Flat-head screw M10
Replace screw.Tightening torque 42 Nm
