Install intake camshaft

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

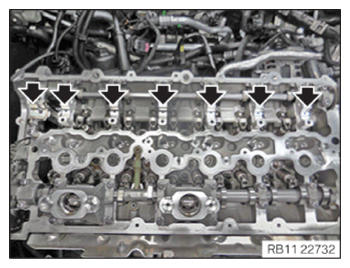

Clean all bearings positions (arrows) and coat with engine oil.

Courtesy of BMW OF NORTH AMERICA, INC.

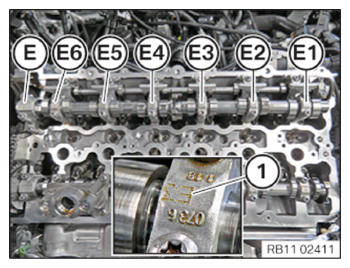

Clean all bearing positions of intake camshaft bearing caps (E1) (E2) (E3) , (E4) (E5) (E6) and (E) coat with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

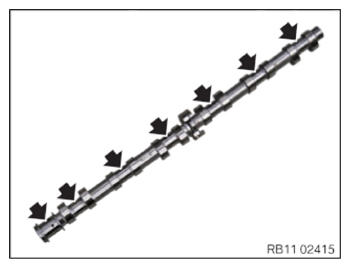

Clean all bearing positions of the intake camshaft and coat with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

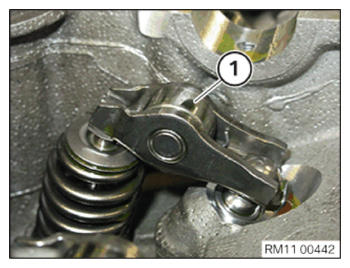

Check all the roller cam followers (1) of the intake side for correct fit.

Courtesy of BMW OF NORTH AMERICA, INC.

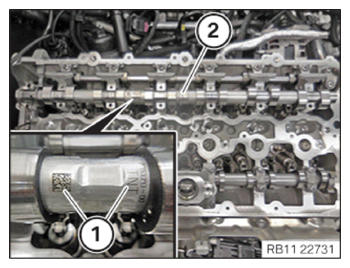

Insert intake camshaft (2) in the bearing brackets in such a way that the mark (1) points towards the top.

Courtesy of BMW OF NORTH AMERICA, INC.

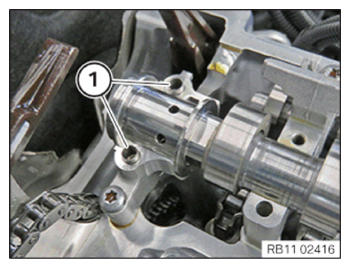

Check fitting sleeves (1) of the thrust bearing for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Engine damage caused by incorrectly installed bearing shells and bearing brackets .
If the bearing shells and bearing brackets are installed incorrectly, then engine damage can occur .

Always install all bearing shells and bearing brackets in the same position from which they were removed.

Courtesy of BMW OF NORTH AMERICA, INC.

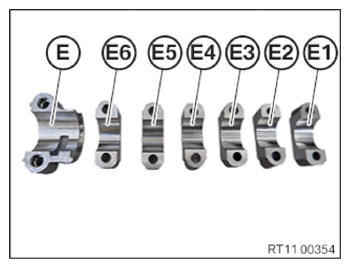

Feed in all intake camshaft bearing caps (E1) to (E6) and the intake camshaft bearing cap for the thrust bearing (E) and install.

NOTE: RISK OF DAMAGE
Improper screw length can cause component damage .
The use of screws of improper length can lead to component damage .

Note the correct screw length.
Install screws that correspond to the original length.

Courtesy of BMW OF NORTH AMERICA, INC.

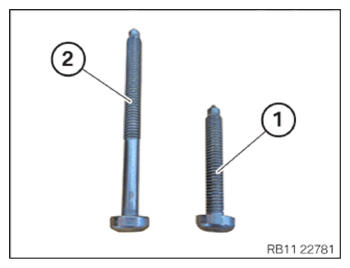

Be careful that the screw (1) M6X35 is installed again in the same place .
Be careful that the screw (2) M6X65 is installed again in the same place .

NOTE: TECHNICAL INFORMATION
The camshaft is under tension due to the valve springs. Tighten or loosen each screw on the camshaft bearing caps in the prescribed sequence only by half a turn. Repeat procedure.

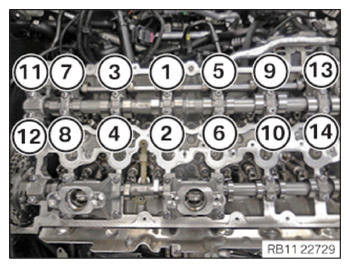

Press the intake camshaft bearing cap down and the screws in the order (1) to (14) gradually tighten until hand-tight.

Fig 1: Intake Camshaft Bearing Caps Screws Tightening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
Join all bolts in sequence (1) to (14) in half turns .
Observe the joining torque .
Tighten all screws in a sequence from (1) to (14) .

TIGHTENING TORQUE SPECIFICATIONS

Intake camshaft to cylinder head
M6	Tensile strength of screw 8.8 Tightening torque	8.6 Nm
M6	Tensile strength of screw 10.9 Tightening torque	11.8 Nm
