Install chain tensioner
NOTE:

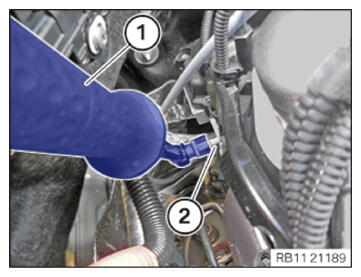

Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Drain the oil chamber in the chain tensioner when reusing the chain tensioner.
Drain the oil chamber in the chain tensioner when reusing the chain tensioner.

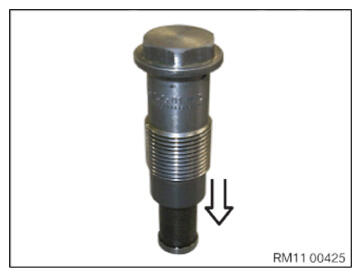

- Place the chain tensioner on a level support, slowly compress in the arrow direction and relieve it.
- Catch and dispose of emerging engine oil.
- Repeat process 2 times.
- Replace the sealing sleeve (1)
.
Parts: Sealing sleeve

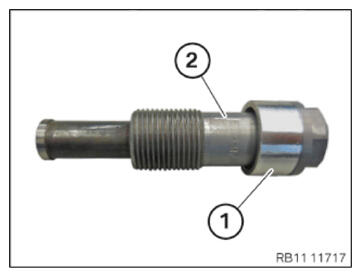

- Guide in and install the sealing sleeve (1) on the chain tensioner (2) .

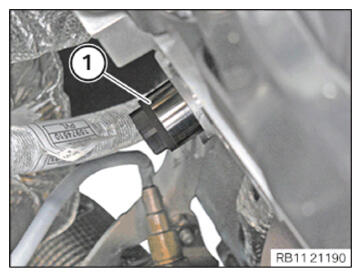

- Guide in and install the chain tensioner (1)
.
- Tighten chain tensioner (2) with commercially available tools (1) .
TIGHTENING TORQUES SPECIFICATION
| Chain tensioner to cylinder head | ||
|---|---|---|
| Chain tensioner | Joining torque | 20 Nm |
| Angle of rotation | 40° | |
Follow-up work
- Refer to INSTALLING THE HEAT SHIELD ON THE CYLINDER HEAD .
- Refer to INSTALLING THE HOLDER OF THE POSITIVE BATTERY CABLE .
- Refer to INSTALLING THE CYLINDER HEAD COVER ACOUSTIC COVER .
- Refer to INSTALLING DIFFERENTIAL PRESSURE SENSOR .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
