Install the decorative strip on the right dashboard

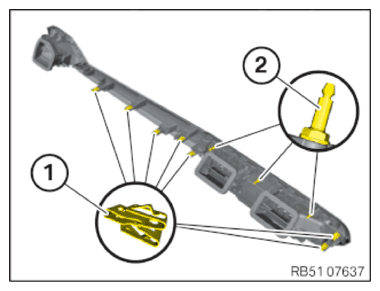

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Check clamp (1) for damage.
Defective or missing clamps (1) need to be replaced.
Check pins (2) and corresponding clamps on the dashboard trim for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Install the decorative strip (1).
Connect and lock corresponding connectors.
Correctly position the decorative strip (1) and clip in on the clamps (2) and pins (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
