Body Equipment -- Repair (G42) (2 Of 2)
>>
51 64 Front Panel, Front End
>>
51 64 025 Removing and installing/replacing upper front connection
>>
Replacement: Remounting the mounting elements
Replacement: Remounting the mounting elements

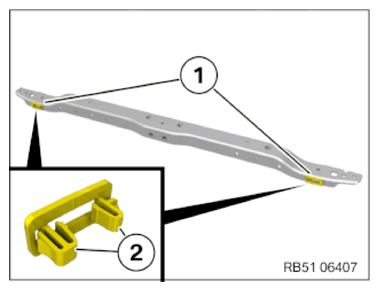

Release the mounting elements
(1)
with the detents
(2)
and remove them.
Courtesy of BMW OF NORTH AMERICA, INC.
Check the detents
(2)
of the mounting elements for damage, replace the mounting elements
(1)
if necessary.
Fit the mounting elements
(1)
and clip it in with the detents
(2)
.
