Partially lowering the headlining
NOTE:
RISK OF DAMAGE
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
- Carry out tasks with a second person to assist.
- Support the headlining at the front and back.
Preliminary work
- Refer to TRIM OF THE 3RD BRAKE LIGHT .
NOTE:
RISK OF DAMAGE
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
Fold the headlining.
Damage to the headlining. If necessary, the headlining must be replaced.
- Carry out tasks with a second person to assist.
- Support the headlining at the front and back.

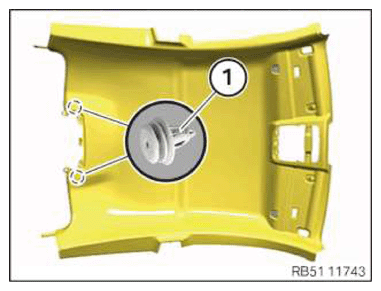

- Pull down and unclip headlining from clips (1) using special tool 2 298 505
.

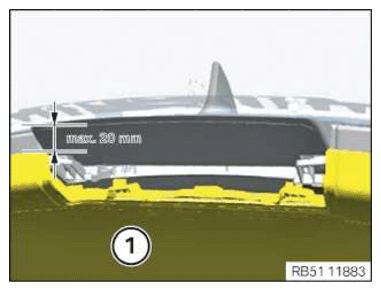

- Lower headlining (1) by a maximum of 20 mm in the area of 3rd brake light.
