Adjusting the front door window glass

Precondition

The vehicle is supported on all the wheels at ground level.

The front door is adjusted correctly.

The battery charger is connected (full operability of the power electric windows during the adjustment work is assured only with external voltage supply).

• Open the door and if necessary move the door window glass to the top-most position.

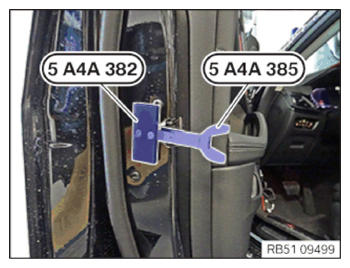

• Insert special tool 5 A4A 385 with special tool 5 A4A 382 into the rotary striker of the door lock and  manually lock the rotary striker (door window glass moves all the way up).
• Close the door carefully until special tool 5 A4A 385  is on the striker (defined opening angle for the measurement).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Do not exert any force on the door or the door window glass during measurement.
• Bring the special tool 0 496 456 (51 0 342)  into position on the seal (1) and the door window glass (2).
• Determine the dimension for the preload between the seal (1) and the outer edge of the door window glass (2).

  Nominal dimension = 72 ±1 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Open door and remove the sealing cap on door frame.
• Feed in the special tool 2 351 398  into the door and fix on the nut (1) and the guide (2).
• Loosen the nut (1) with the knob (3).
• Set the preload by turning the lever (4). Nominal dimension = XX ± 1 mm.
• Tighten nut (1).
  TIGHTENING TORQUE SPECIFICATION



  Power electric windows to inner door panel
  M6	Tightening torque	9.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the setting and repeat the procedure if necessary.
• Remove special tool 2 351 398  and fit the seal plug.
• Remove special tool 5 A4A 385  and 5 A4A 382  from the rotary striker of the door lock.
• Insert special tool 2 356 862 with the holder (5 mm) (1) onto the door window glass in locked state (A).

  Close the door and release the lock (2) in arrow direction (B).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Open door.

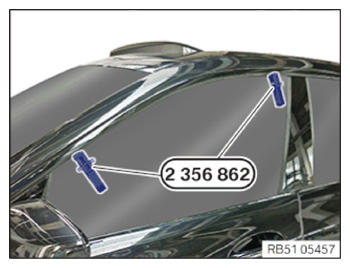

• Insert special tool 2 356 862 as shown onto the door window glass (each approx. 7 cm offset to the inside).
• Close door.
• Measure retraction depth

  Nominal dimension: 5.5 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

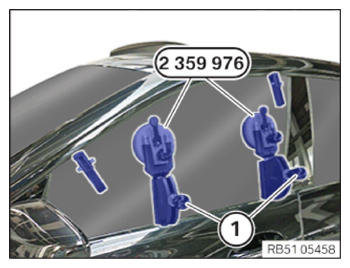

• Attach the special tool 2 359 976 to the door window glass in such a way that the multi-tooth screws on the door window glass are still accessible.
• Release adjustment lever (1) by twisting.
• Set the retraction depth of the side window (1) by shifting the adjustment lever.

  Nominal dimension: 5.5 mm

• Tighten adjustment lever (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

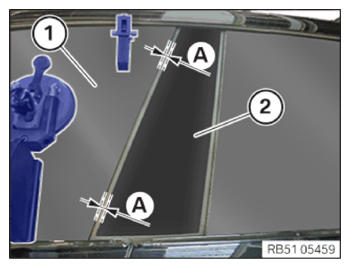

• Adjust the door window glass (1) parallel to B-pillar trim panel (2).

  Dimension (A) = 8.8 ± 1.2 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Tighten the front door window glass

  NOTE: TECHNICAL INFORMATION
  When using special tools that extend the lever arm of the torque wrench, the setpoint torque deviates from the adjustable torque.
  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Converting the setpoint torque into the adjustable torque:

  (Setpoint torque * L1)/L2 = Torque to be set

  L1 = length from the center of the grip to the reversible ratchet head

  L2 = length from the center of the grip to the center point of the ring on the special tool

• Tighten multi-point nuts (1) on the door window glass in the front using special tool 2 360 051 B  and a torque wrench.
  TIGHTENING TORQUE SPECIFICATION



  Toothed nut of side window
  Multi-tooth nut	tightening torque	11 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING OUTER WINDOW CHANNEL STRIP .
