Installing the front emblem
NOTE:
TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
- Clean the adhesive area on the bumper cover.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Replace the emblem.
Parts: Emblem
- Detents (1) must not be damaged or missing.
- Detach the liner from the adhesive tape (2).

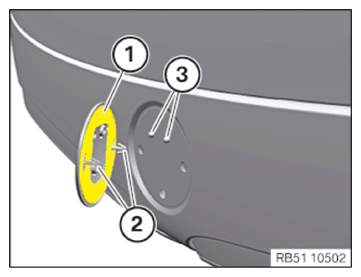

- Position the emblem (1) above the detents (2) and the guides (3) and press it firmly.
