(Removing the right front door)
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
RISK OF DAMAGE
Mechanical effects .
Paint damage .
Mechanical effects .
Paint damage .
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
- Open door.

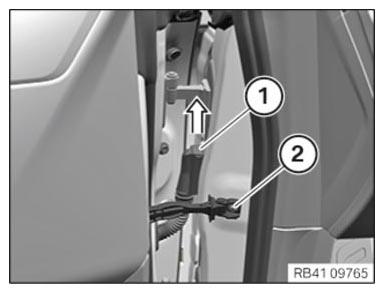

- Pull the lock (1) upwards and disconnect the plug connection.
- Secure door against closing.
- Loosen screw (2) at door stop.
- Loosen screws (1) between both hinge elements at top and bottom.
- Detach door in upward direction and set down on a suitable surface.
