(Installing the right hinge cover)
NOTE:
Description is for left component only. Procedure on the right side is identical.

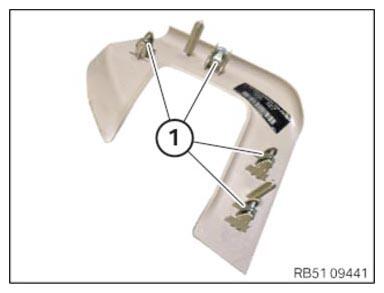

- Check clamps (1) for damage; replace if necessary.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

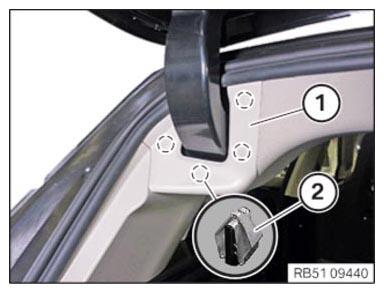

- Install hinge cover (1) and engage it into clamps (2).
- Ensure the correct fit of the hinge cover (1) on the tailgate seal.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
