(Installing the door sill cover strip on the rear left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

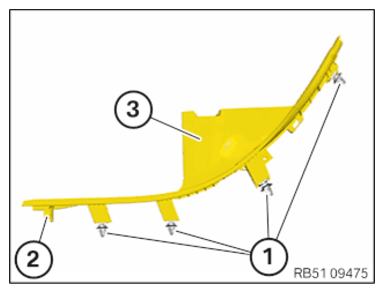

• Remove clips remaining in the body (1) and mount them on the door sill cover strip (3).
• Check the clips (1) and guide (2) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the door sill cover strip (2) and position it correctly.
• Engage the door sill cover strip (2) in the clips (3).
• Mount the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
