(Install the bottom left and right B-pillar trim panel)
NOTE:
Description is for left component only. Procedure on the right side is identical.

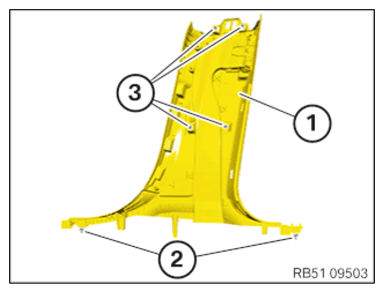

- Remove clips remaining in the body (2) and mount them on the B-pillar trim panel (1).
- Check the clips and (3) replace them as needed.
- Feed in the B-pillar trim panel (1) and position it correctly.
Make sure that the B-pillar trim panel (1) is positioned correctly on the edge protection at the front and rear.
- Clip in the B-pillar trim panel (1) into the clips (3).
- Clip in the B-pillar trim panel (1) into the clips (2).
