Installing the trim strip at the rear window
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
Check

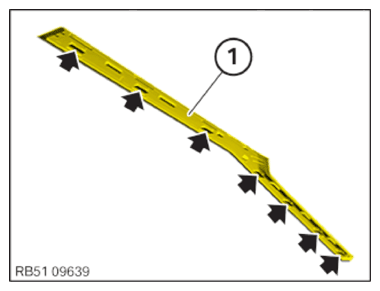

- Check the snap-in lugs (arrows) on the trim strip (1) for damage.
Result
» The snap-in lugs (arrows) are damaged.
Measure
- Replace the trim strip (1) .
Check

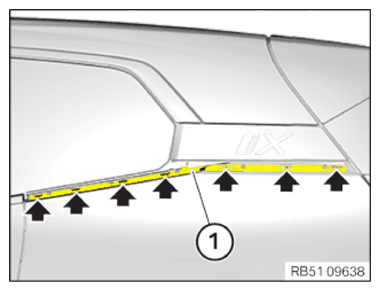

- Check the detents (arrows) of the retaining strip (1) for damage.
Result
» The detents (arrows) are damaged.
Measure
- Replace the retaining strip (1) .
- Position the trim strip (1) correctly and engage it at the detents.
