52 26 Rear Seats
>>
52 26 005 Removing and installing/replacing rear seat
>>
Installing the rear seat
Installing the rear seat
Position rear seat
(3)
carefully into the vehicle.
Guide upper seat belts
(2)
into rear seat
(3)
.
Guide lower straps
(1)
into rear seat
(3)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock all existing plug connectors.

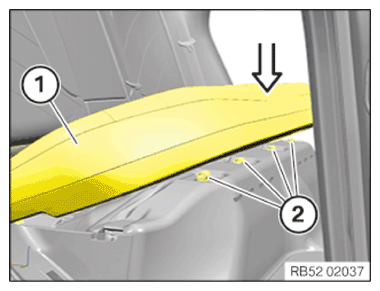

Clip rear seat
(1)
carefully into detents
(2)
in the arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
