51 47 Floor / Trunk / Engine Compartment Trim Panels
>>
51 47 490 Removing and installing/replacing underbody protection (front)
>>
Install front underbody protection
Install front underbody protection

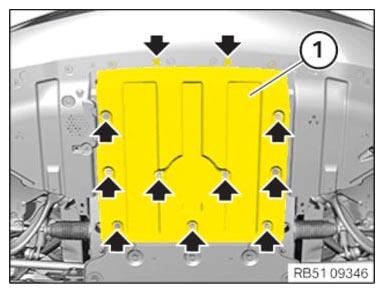

Insert the underbody protection
(1)
.
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
Undershield/diffuser
Hexagon bolt or hexagon nut
Tightening torque
2.3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
