Installing module bracket

Check

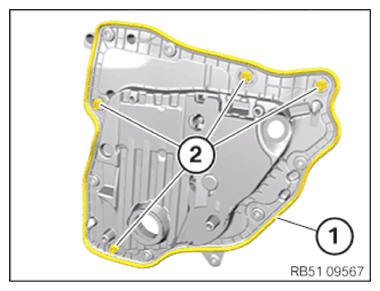

• Check the seal (1)  and the bayonet closures (2)  on the module bracket for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The seal (1)  or bayonet closures (2)  on the module bracket are damaged.

Measure

• Replace the module bracket.

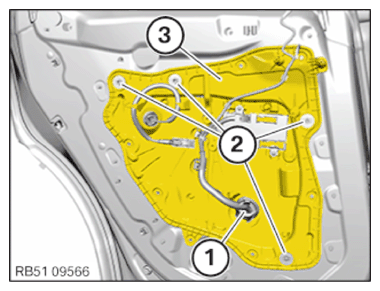

• Attach the module bracket (3)  and feed in the wiring harness and Bowden cable.
• Lock the bayonet closures (2)  by turning 90°.
• Mount the rubber grommet (1)  of the wiring harness correctly on the module bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

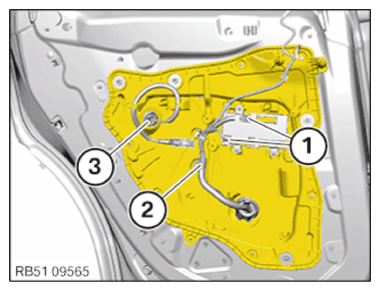

• Mount the rubber grommet (3)  of the Bowden cable correctly on the module bracket.
• Clip in the wiring harness (2)  on the module bracket.
• Connect connectors (1)  and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

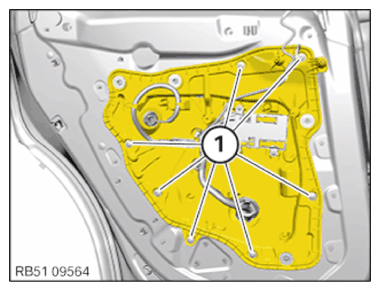

• Tighten the screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR DOOR TRIM PANEL .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE REAR DOOR TRIM PANEL .
• Refer to INSTALLING THE TRIM FOR THE EMERGENCY OPERATION .
