Body Equipment (1 Of 2) -- Repair (IX)
>>
51 31 Windshield, Rear Window
>>
51 31 000 Removing and installing windshield
>>
Replace the spacer
Replace the spacer
When installing the windshield, remove adhesive residue from the body and clean the adhesive area.
Remove spacer
(1)
.
Replace spacer
(1)
.
Parts:
Spacer

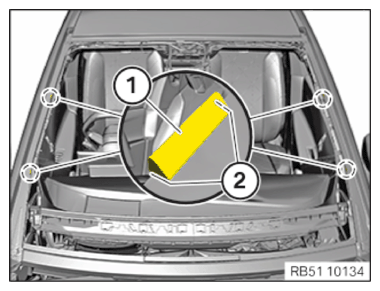

Adhere spacer
(1)
in the center on the marks
(2)
embossed on the body side.
Courtesy of BMW OF NORTH AMERICA, INC.
