Prepare windshield

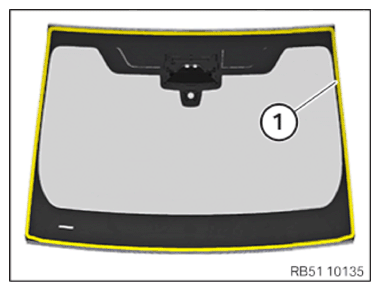

- Clean the windshield in the area of the adhesive bead (1) .
CONSUMABLE SPECIFICATION
| Cleaning agent R2 | 500 ml | 83190417324 |
- After cleaning, allow to air out.
TECHNICAL DATA SPECIFICATION
| Air drying time after cleaning | ||
|---|---|---|
| Window glass or painted panel without residual adhesive bead | 5 min | |
| Body with adhesive bead | 15 min | |
- Only remove the residual adhesive bead (1) from the windshield shortly before bonding with the standard tool.
Standard tool:
Pinchweld scraper set
Pinchweld scraper set
81 62 0 410 436
NOTE:
TECHNICAL INFORMATION
Do not touch the adhesive bead after cutting or allow it to come into contact with cleaning agents.
Do not touch the adhesive bead after cutting or allow it to come into contact with cleaning agents.
- Apply the pinch weld scraper as pictured and cut back the adhesive bead (1) .
TECHNICAL DATA SPECIFICATION
| Residual height of the adhesive bead | ||
|---|---|---|
| Residual height of the adhesive bead | max. 1 mm | |
