Removing the model inscription
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- To avoid paint damage: Mask off the component in the working area with plastic adhesive tape.

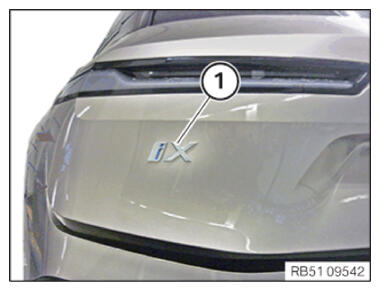

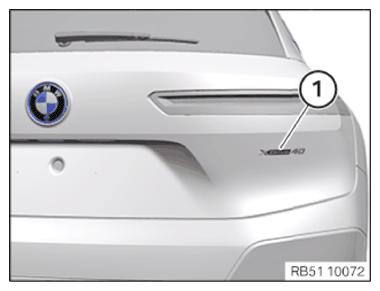

- Heat the model inscription (1) carefully with a hot air blower and release it from the adhesive strip with the special tool 0 490 539 (00 9 322) .
TECHNICAL DATA SPECIFICATION
| Heating using hot air blower | ||
|---|---|---|
| Surface temperature | 40°C... 50°C | |
- Remove adhesive residue from the trunk lid.
- To avoid paint damage: Mask off the component in the working area with plastic adhesive tape.
- Heat the model inscription (1) carefully with a hot air blower and release it from the adhesive strip with the special tool 0 490 539 (00 9 322) .
TECHNICAL DATA SPECIFICATION
| Heating using hot air blower | ||
|---|---|---|
| Surface temperature | 40°C... 50°C | |
- Remove adhesive residue from the trunk lid.
