Installing mode inscription
NOTE:
TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
CAUTION:
Laser beam.
Injury hazard!
Injury hazard!
- Do not look into the laser beam.
- Park the vehicle and the special tool 2 407 566 on a flat and even surface.
- Mount the laser on the tripod.
- Switch on laser (Position without automatic level).
- Activate laser horizontally and vertically.
- Position the tool behind the vehicle.

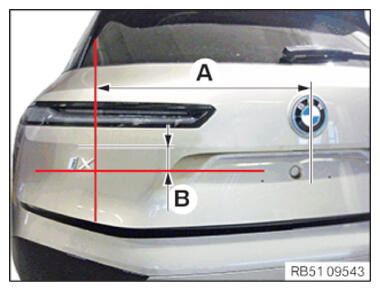

- Align the vertical laser beam to the center of the tailgate with dimension (A) = 60 cm.
- Align the horizontal laser beam to the contour edge of the tailgate with the dimension (B) = 7 cm.
- Clean the bonding surface on the tailgate.
CONSUMABLE SPECIFICATION
| Cleaning agent R2 | 500 ml | 83190417324 |
- Pull off the liner (protective film) from the adhesive strips of the model inscription.
- Align the model inscription to the laser beam and press it onto the tailgate.
- Consumable
- Position the tool behind the vehicle.

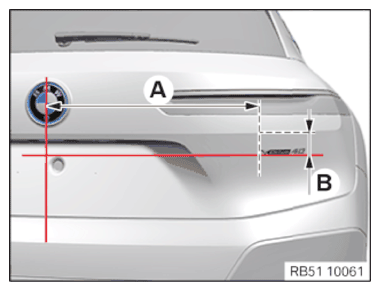

- Align the vertical laser beam to the center of the tailgate with dimension (A) = 57 cm.
- Align the horizontal laser beam to the contour edge of the tailgate with the dimension (B) = 6 cm.
- Clean the bonding surface on the tailgate.
CONSUMABLE SPECIFICATION
| Cleaning agent R2 | 500 ml | 83190417324 |
- Pull off the liner (protective film) from the adhesive strips of the model inscription.
- Align the model inscription to the laser beam and press it onto the tailgate.
