Body Equipment (1 Of 2) -- Repair (IX)
>>
51 14 Plates, Labels, Adhesive Films
>>
51 14 000 Removing and installing/replacing front BMW badge
>>
Removing the front emblem
Removing the front emblem

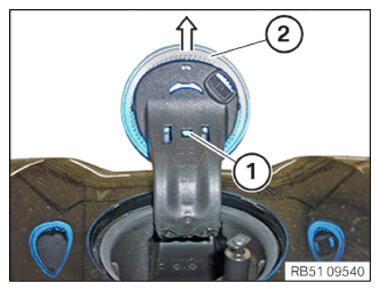

Press down emblem (1) and open it.
Courtesy of BMW OF NORTH AMERICA, INC.
Press in detent (1) carefully using a suitable screwdriver.
Slide emblem (2) in the arrow direction and remove it.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
