Body Equipment (1 Of 2) -- Repair (IX)
>>
51 14 Plates, Labels, Adhesive Films
>>
51 14 000 Removing and installing/replacing front BMW badge
>>
Installing the front emblem
Installing the front emblem

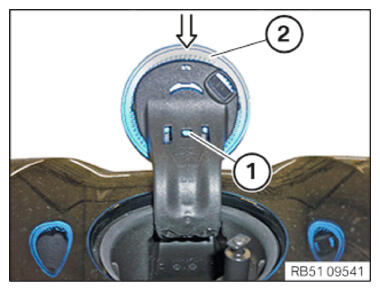

Position emblem
(2)
and slide it in the arrow direction.
Let detent
(1)
engage audibly.
Courtesy of BMW OF NORTH AMERICA, INC.

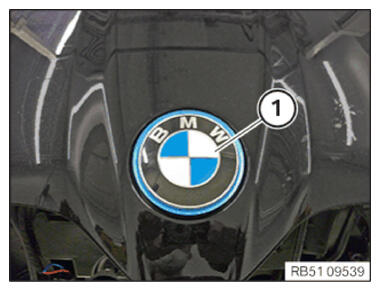

Press down emblem
(1)
and close it.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
