Installing the outer B-pillar trim panel

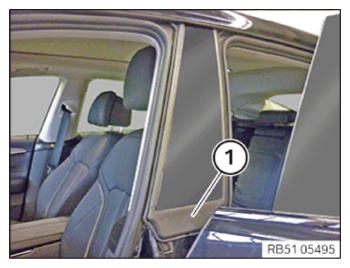

Insert B-pillar trim panel (1) upwards into the holder (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

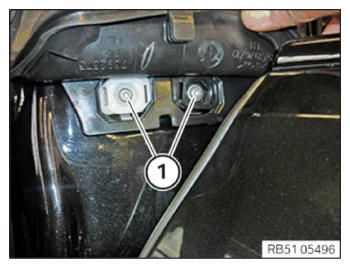

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

B-pillar trim panel to body
Screw TS5x20	Tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Fold down the rubber seal (1) and guide it into the trim.

Courtesy of BMW OF NORTH AMERICA, INC.

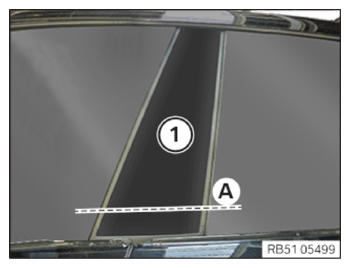

Measure the protrusion of the side window glass in the lower area (A) of the B-pillar trim panel (1) .
The nominal dimension of the protrusion of the side windows to the B-pillar trim panel: 1.2 mm ± 0.5 mm
Adjust the target dimension if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting the outer B-pillar trim panel

Courtesy of BMW OF NORTH AMERICA, INC.

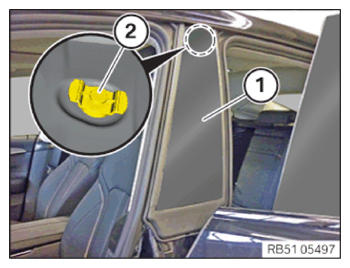

Adjust the B-pillar trim panel (1) by twisting the hexagon on the adjusting elements (2) .
Nominal dimension of the protrusion of the side windows to the B-pillar trim panel: 1.2 mm ± 0.5 mm

Courtesy of BMW OF NORTH AMERICA, INC.

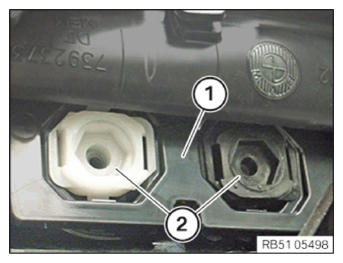

Position and tighten screws (1) . While doing this, make sure that the hexagon of the adjusting elements does not twist.

TIGHTENING TORQUE SPECIFICATIONS

B-pillar trim panel to body
Screw TS5x20	Tightening torque	2 Nm

Once again check the protrusion of the side windows to the B-pillar-trim panel and where appropriate repeat the adjustment.

Courtesy of BMW OF NORTH AMERICA, INC.
