Installing the gap seal at the right B-pillar

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the gap seal at the B-pillar

Precondition

Front door is open.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

CONSUMABLE SPECIFICATION

Cleaning agent R2

500 ml

83190417324

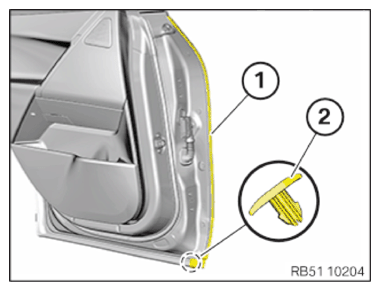

Replace gap seal (1) .
Parts: Gap seal
Attach gap seal (1) to clip (2) .
Detach the liner from the gap seal.
Position gap seal (1) and press it on the adhesive strip along the entire length.
