Remove the left front undershield

Preliminary work

• Refer to REMOVING THE FRONT UNDERBODY PROTECTION .

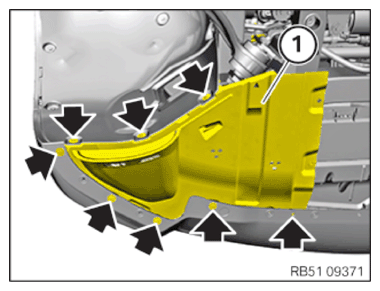

• Remove screws (arrows).
• Guide out the undershield (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

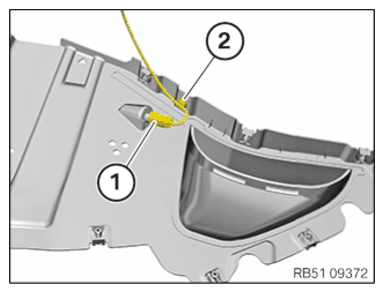

• Release the cable bracket (2)  from the undershield.
• Remove the temperature sensor (1)  from the undershield.

Courtesy of BMW OF NORTH AMERICA, INC.
