Removing front radar sensor (FRS)

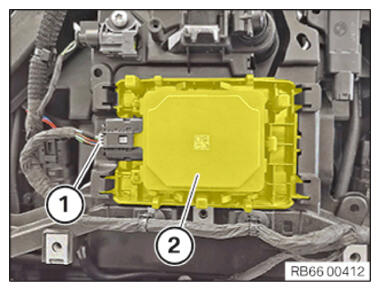

- Unlock and disconnect the plug connection (1) on the front radar sensor (FRS) (2) .
NOTE:
TECHNICAL INFORMATION
Carry out the work at temperatures between 18°C and 23°C only.
Carry out the work at temperatures between 18°C and 23°C only.

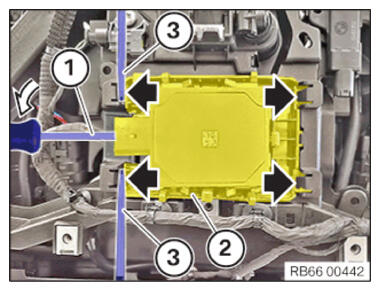

- Position the conventional screwdriver (1) behind the adapter plate (2) for the front radar sensor (FRS).
- Slightly increase the preload on the adapter plate (2) by carefully leveraging on the screwdriver (1) in the arrow direction.
- Insert the conventional screwdriver (3) slightly in the left locks (arrows).
- Carefully unlock the locks (arrows) on the left side.
- Feed out and remove the front radar sensor (FRS) with the adapter plate (2) from the locks (arrows) on the right side.
