Installing front radar sensor (FRS)
NOTE:
TECHNICAL INFORMATION
Carry out the work at temperatures between 18°C and 23°C only.
Carry out the work at temperatures between 18°C and 23°C only.
NOTE:
TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.
Detents, guides and mounting elements must not be damaged or missing.

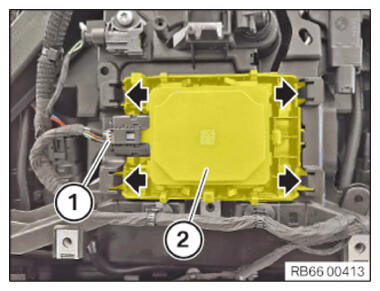

- Guide in the front radar sensor (FRS) (2) with the holder and install.
- Lock the locks (arrows).
- Connect connectors (1) and lock.
