Install acceleration sensor

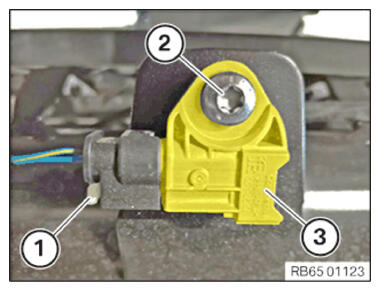

- Attach the acceleration sensor (3)
.
- Tighten down screw (2)
.
TIGHTENING TORQUE SPECIFICATIONS
| Acceleration sensor on holder |
| M6 |
Tightening torque |
8 Nm |
- Connect connectors (1)
and lock.
