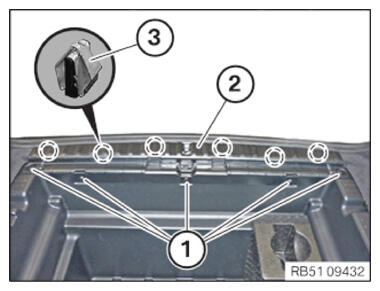

Installing loading edge trim

• Check clamps (3)  and, if necessary, replace them.
• Install loading edge trim (2)  while guiding it on the tailgate seal.
• Engage loading edge trim (2)  into clamps (3)  .
• Mount the expanding rivets (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
