Removing luggage compartment well
Preliminary work
- Refer to REMOVING THE REAR WINDOW STORAGE SHELF AT FRONT .
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING THE SWITCH FOR REMOTE BACKREST UNLOCKING .
- Refer to REMOVING LEFT AND RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANELS .

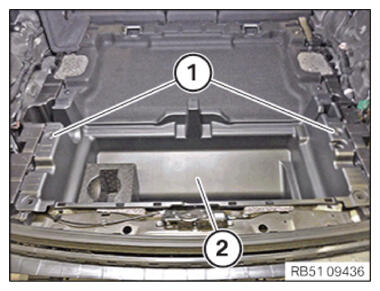

- Loosen the expanding rivet (1) .
- Lift the luggage compartment well (2) and remove it.
