Prepare installation
- Protect the vehicle interior against contamination.

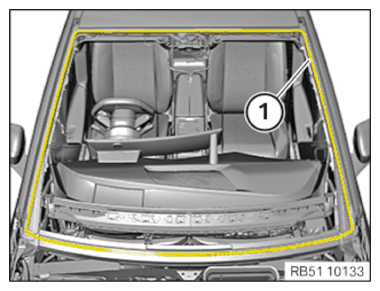

- Clean body aperture (1) with adhesive bead.
CONSUMABLE SPECIFICATION
| Cleaning agent R2 | 500 ml | 83190417324 |
- Clean the painted metal surfaces without the adhesive bead.
CONSUMABLE SPECIFICATION
| Cleaning agent R1 | 100 ml, Bottle | 83192211217 |
- After cleaning, allow to air out.
TECHNICAL DATA SPECIFICATION
| Air drying time after cleaning | ||
|---|---|---|
| Window glass or painted panel without residual adhesive bead | 5 min | |
| Body with adhesive bead | 15 min | |
- Shortly before adhesion with the standard tool, remove adhesive bead (1) on the body aperture.
Standard tool:
Pinchweld scraper set
Pinchweld scraper set
81 62 0 410 436
NOTE:
TECHNICAL INFORMATION
Do not touch the adhesive bead after cutting or allow it to come into contact with cleaning agents.
Do not touch the adhesive bead after cutting or allow it to come into contact with cleaning agents.
- Apply the pinch weld scraper as pictured and cut back the adhesive bead (1) .
TECHNICAL DATA SPECIFICATION
| Residual height of the adhesive bead | ||
|---|---|---|
| Residual height of the adhesive bead | max. 1 mm | |
- Be sure to touch up paintwork damage.
- Sand large-scale damage down to the bare metal and coat.
TECHNICAL DATA SPECIFICATION
| HS-AM multi-base filler VOC | ||
|---|---|---|
| Layer thickness | 30 μm... 40 μm | |
| Hardening time with infrared | 10 min | |
| Hardening time without infrared | 60°C 30 min |
|
| Hardening time without infrared | 20°C 1 Tag |
|
