Remove the roof trim strip
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
Description is for left component only. Procedure on the right side is identical.

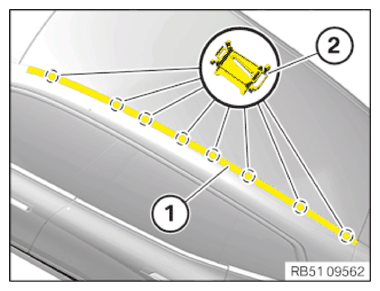

- Lever the roof trim strip (1) upward out of the clamps (2) beginning in the rear with the special tool 0 496 569 (00 9 325) .
- Remove the roof trim strip (1) .
