Body Equipment (1 Of 2) -- Repair (IX)
>>
51 13 Exterior Body Trim Panels
>>
51 13 280 Removing and installing left or right roof trim strip
>>
Installing the roof trim strip
Installing the roof trim strip

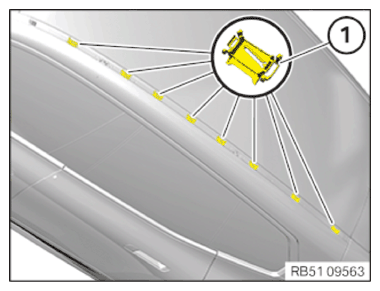

Check the clamps
(1)
for damage and replace them if necessary.
Courtesy of BMW OF NORTH AMERICA, INC.
Position the roof trim strip
(1)
correctly on the roof frame.
Engage the roof trim strip
(1)
, beginning at the front, in the clamps
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
