Replace the support for the bumper cover
Remove fanfare horns
NOTE:
TECHNICAL INFORMATION
Only replace the fanfare horn complete with the holder.
Only replace the fanfare horn complete with the holder.

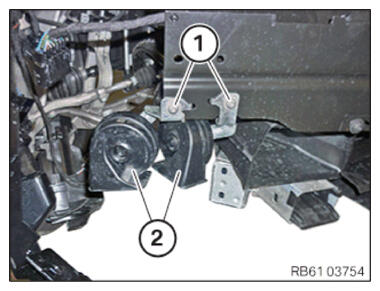

- Loosen screws (1) .
- Unlock associated plug connection and disconnect.
- Remove fanfare horns with the holders (2)
.
- Replace the support for the bumper cover.
Parts: Support for the bumper cover
Install fanfare horns
NOTE:
TECHNICAL INFORMATION
Only replace the fanfare horn complete with the holder.
Only replace the fanfare horn complete with the holder.
- Position the fanfare horns with the holders (2) .
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Fanfare horn on support | ||
|---|---|---|
| Screw | Tightening torque | 11.8 Nm |
- Connect corresponding connectors and lock.
