Installing the ADCAM camera (basic version)
NOTE:
TECHNICAL INFORMATION
The camera lenses and the surrounding surfaces in the area of the cameras must not be contaminated! All work must be prepared and carried out in a low-dust environment. Wearing of disposable gloves is mandatory. Only start the work once all new parts are present. If necessary, clean the contaminated surfaces and camera lenses.
The camera lenses and the surrounding surfaces in the area of the cameras must not be contaminated! All work must be prepared and carried out in a low-dust environment. Wearing of disposable gloves is mandatory. Only start the work once all new parts are present. If necessary, clean the contaminated surfaces and camera lenses.
NOTE:
TECHNICAL INFORMATION
Check complete lens hood (including detents, guides and mounting elements) for damage before installing the cameras or the wiring harness.
Damaged lens hoods must no longer be used, as permanent firm fit of the cameras is not guaranteed.
Check complete lens hood (including detents, guides and mounting elements) for damage before installing the cameras or the wiring harness.
Damaged lens hoods must no longer be used, as permanent firm fit of the cameras is not guaranteed.

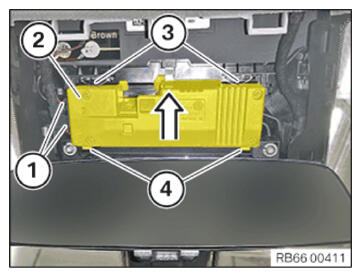

- Install the ADCAM camera (2) and shift it upwards against the springs (3) in the arrow direction.
- Guide and install ADCAM camera (2) in guides (4) .
- Connect all connectors (1) and lock.
Follow-up work
