Removing the left oil feed line partially
Removing the left oil feed line partially

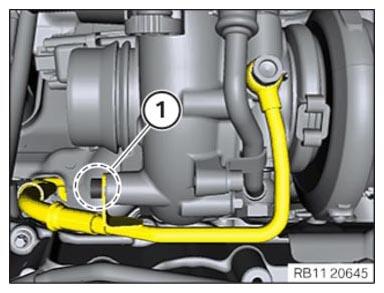

Loosen screw (1).
Courtesy of BMW OF NORTH AMERICA, INC.

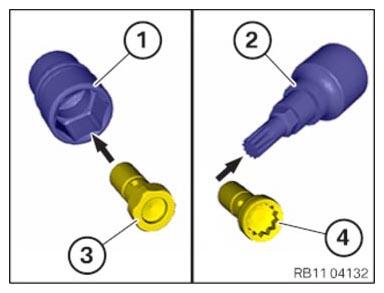

Determining the screw type and selecting the appropriate socket wrench:
Screw type
Matching socket wrench
Hexagon screw (3)
Commercial socket wrench (1)
Multi-tooth screw (4)
Multi-tooth socket wrench (2)
Courtesy of BMW OF NORTH AMERICA, INC.

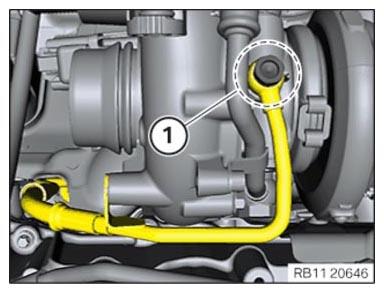

Loosen screw (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
