Removing the heat shields
Removing the heat shields

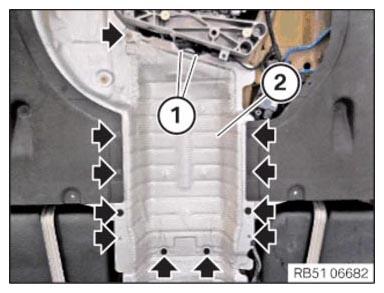

Release the clamps (1) (B57).
Loosen screws and the nuts (arrows).
Remove the heat shield (2).
Courtesy of BMW OF NORTH AMERICA, INC.

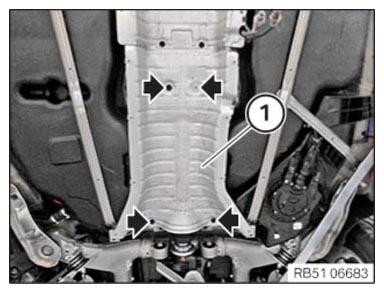

Remove screws (arrows).
Remove the heat shield (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
