Releasing the brake hose and cable
Releasing the brake hose and cable

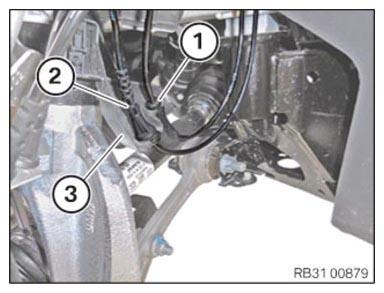

Release the brake hose (1) from the holders (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Remove cable (2) from holder (3).
NOTE:
Only perform the operation on the left side.
Remove cable (1) from holder (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
