Installing the left oil feed line partially
- Replace the screw (1).
Parts: Screw
- Replace sealing ring(s) (2).
Parts: Sealing ring(s)
When installing sealing rings without installation aid (bar), both sealing rings must be replaced.

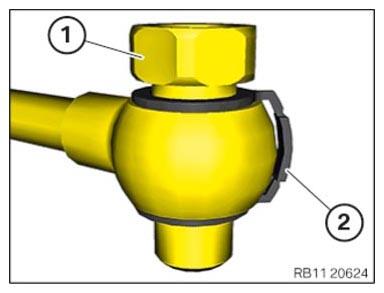

- Position screw (1) with the sealing ring or sealing rings (2) on the oil feed line.
- Position oil feed line.

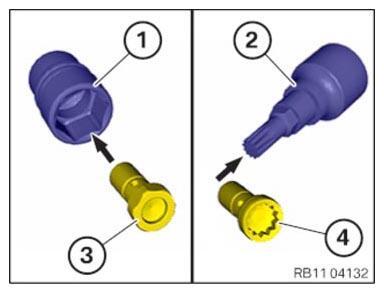

- Determining the screw type and selecting the appropriate socket wrench:
Screw type Matching socket wrench Hexagon screw (3) Commercial socket wrench (1) Multi-tooth screw (4) Multi-tooth socket wrench (2) - Tighten down screw (1).TIGHTENING TORQUE SPECIFICATION
Oil feed line to exhaust turbocharger Banjo bolt M10x1 Replace screw. Joining torque 8 Nm Angle of rotation 70° - Tighten down screw (1).TIGHTENING TORQUE SPECIFICATION

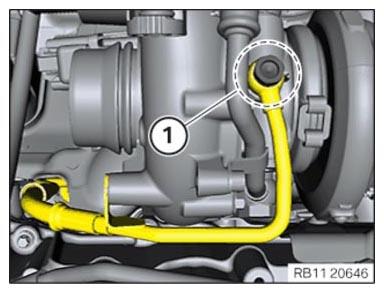

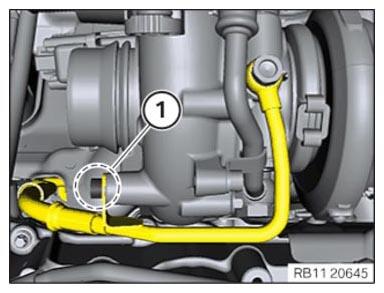

Oil feed line holder to exhaust turbocharger M6x16 screw Tightening torque 10 Nm
