Installing the connecting plate

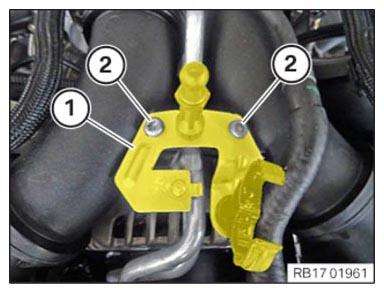

- Install the connecting plate (1).
- Tighten the screws (2).TIGHTENING TORQUE SPECIFICATION

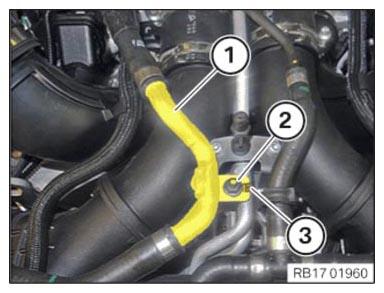

Connecting plate of charge air cooler Screw Tightening torque 6.5 Nm - Position the coolant line (1) on the centering bearing (3).
- Tighten nut (2).TIGHTENING TORQUE SPECIFICATION

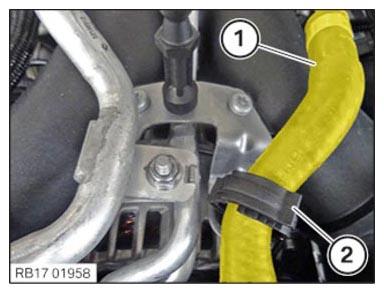

Coolant line to the connecting plate Nut M6 Tightening torque 8 Nm - Position the coolant ventilation line (2) in the holder (1).
- Lock holder (1).
