Install the front section of the front right wheel arch cover

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the front section of the front wheel arch cover

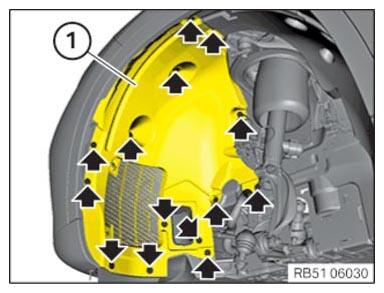

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATION

Wheel arch cover
Thermoplastic hexagon screw	Tightening torque	2.6 Nm
Plastic nut	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
