Detach the upper wishbone from the swivel bearing
Detach the upper wishbone from the swivel bearing

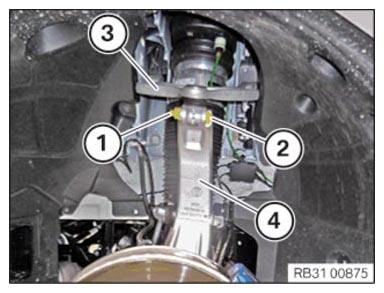

Loosen nut (1).
Pull out screw (2).
Detach upper wishbone (3) from swivel bearing (4).
Courtesy of BMW OF NORTH AMERICA, INC.
