Install the integrated power supply module (PDM)

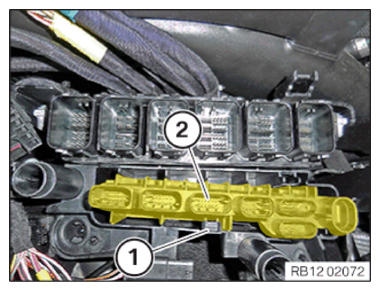

• Insert and install the integrated power supply module (PDM) (2).

The lock (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (3) and lock.

  The connectors (3) must engage audibly.

• Connect connectors (2) and lock.

  The connectors (2) must engage audibly.

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in cover (1) in direction of arrow on the bracket (2) and install.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Ensure that the locking mechanisms (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
