Installing wiring harness section for ignition system of bank 2

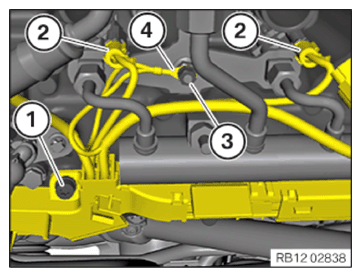

• Feed in and position the wiring harness section for the ignition system.
• Clip in the wiring harness mounting (5).
• Position the cable head (4).
• Tighten nut (3).
  TIGHTENING TORQUE SPECIFICATION



  Ground cable to hold-down device
  Nut M5	tightening torque	5.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (2) and lock.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Cable duct
  M6x16 screw	Tightening torque	10 Nm

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Cable duct
  M6x16 screw	Tightening torque	10 Nm

• Unlock and disconnect the plug (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (3).
  TIGHTENING TORQUE SPECIFICATION



  Ground cable to hold-down device
  Nut M5	tightening torque	5.5 Nm

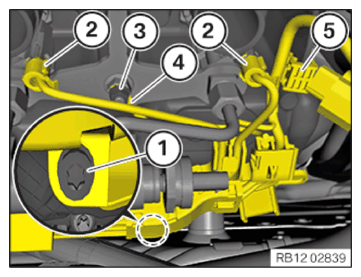

• Lay the cable head (4) to one side.
• Clip in the sensor wiring harness mountings in the areas (1).
• Connect connectors (2) and lock.
• Clip in the wiring harness mounting (3).

Courtesy of BMW OF NORTH AMERICA, INC.

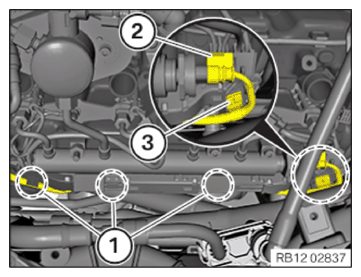

• Position the transmission wiring harness (2).
• Clip in wiring harness mountings (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

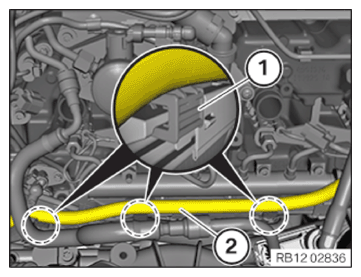

• Clip the wiring harness mounting (2) on the bar of the cylinder head cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

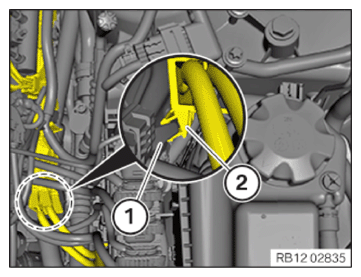

• Connect connectors (2) and lock.
• Unclip the wiring harness mounting (1) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

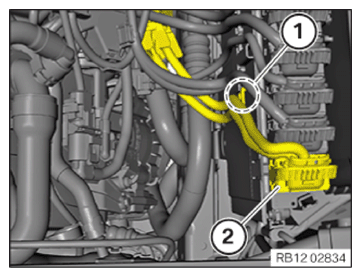

• Feed in cover (1) in direction of arrow into the bracket (2) and install.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lock cover (1) (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING COVER FOR THE LEFT DME CONTROL UNIT .
• Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
• Refer to INSTALLING THE IGNITION COILS OF CYLINDER BANK 2 .
• Refer to INSTALLING THE LEFT INTAKE SILENCER BRACKET .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
