Remove the rear active stabilizer
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THE REAR RIGHT WHEEL .
- Refer to REMOVING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
- Refer to REMOVING THE LEFT AND RIGHT UNDERSHIELD (TANK COVER) .
- Refer to REMOVING THE REAR LEFT AND RIGHT TENSION STRUT .
- Refer to REMOVING THE LEFT AND RIGHT REAR DIFFUSER .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to LOOSENING THE ANTI-ROLL BAR LINKS ON THE ANTI-ROLL BAR ON THE LEFT AND RIGHT .
- Refer to DISCONNECTING THE WIRING HARNESS OF THE REAR ACTIVE STABILIZER .

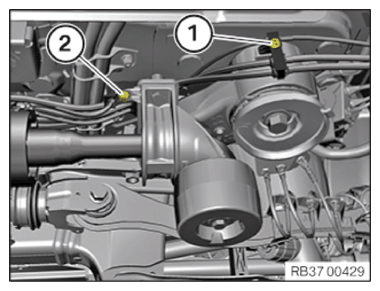

- Loosen screws (1) and (2).
- Release the vehicle wiring harness of the active stabilizer with both cable brackets.NOTE: TECHNICAL INFORMATION

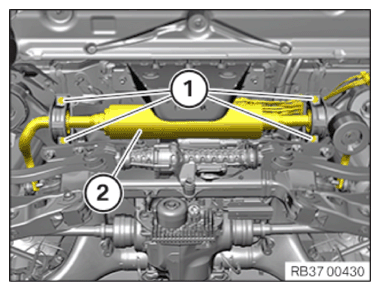

Secure component against falling. - Loosen screws (1).
- Feed out and remove the active stabilizer (2).
