Remove front air suspension
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
Preliminary work
- Refer to CREATING A FAULT MEMORY PRINTOUT IN WARRANTY CASES .
- Refer to DEACTIVATING THE AIR SPRING SYSTEM .
- Refer to REMOVING SUSPENSION STRUT BRACE .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to DETACHING THE UPPER WISHBONE FROM THE SWIVEL BEARING .
- Refer to SECURING THE SWIVEL BEARING .
- Refer to RELEASING THE BRAKE HOSE AND CABLE .
- Refer to REMOVING SPRING STRUT HOLDER .

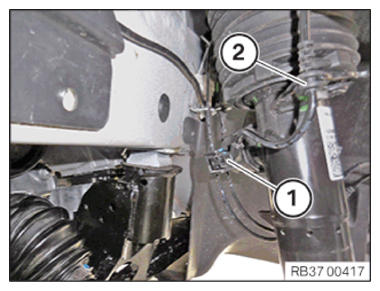

- Unlock and disconnect the plug connection (1) on the air suspension.
- Remove cable from holder (2).
Remove air line on front air suspension
CAUTION:
Residual pressure in the air suspension strut.
Injury hazard!
Injury hazard!
- The air suspension strut remains under a certain amount of residual pressure even after the pipe is disconnected.
- Do not disassemble the air suspension strut.
NOTE:
TECHNICAL INFORMATION
For additional information see: NOTES ON AIR SPRING SYSTEM .
For additional information see: NOTES ON AIR SPRING SYSTEM .

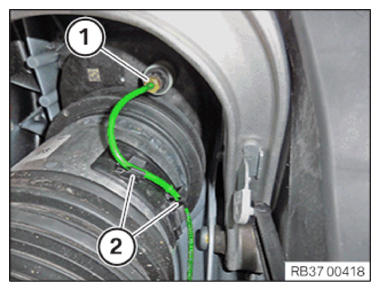

- Carefully slacken the banjo bolt (1) on the air suspension until you hear leaking air (hissing noise).
- Wait approx. 2 min until the pressure in the air spring system is completely relieved.
The hissing noise stops.
- Completely release the banjo bolt (1) with the air line from the air suspension after complete pressure reduction.
- Release the air line from the holders (2).
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.
- Loosen screws (1).

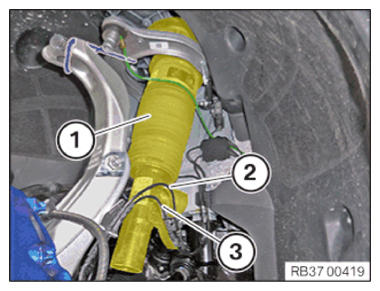

- Guide out the air suspension (1) at cables (2) and (3).
- Remove the air suspension (1) toward the bottom.
