Install ride height sensor, front

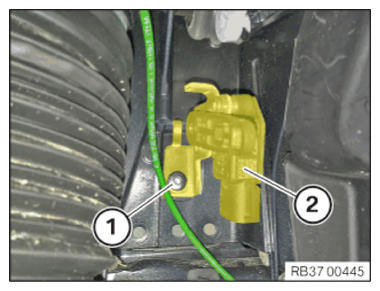

• Position the front ride height sensor (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Holder, ride height sensor, at the body
  M6	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

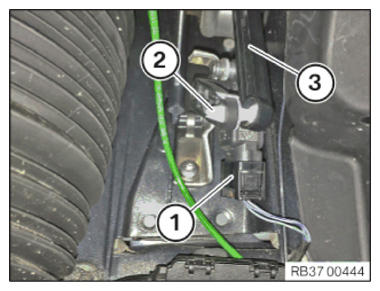

• Position the attachment rod (3) with the clip (2) on the ride height sensor.
• Lock the clip (2).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT LEFT OR RIGHT WHEEL .
• Refer to CARRYING OUT RIDE HEIGHT ADJUSTMENT .
• Refer to RESETTING THE TIRE PRESSURE MONITOR .
• Refer to ADJUSTING HEADLIGHTS .
