Install front intake pipe
- Replace O-rings.
Parts: O-rings

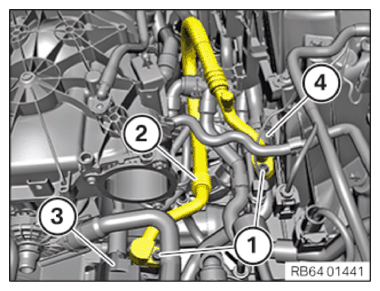

- Feed in and position intake pipe (2) correctly.
- Install the intake pipe (2) at the air conditioning compressor (3).
- Install the intake pipe (2) at the pressure line (4).
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Refrigerant line on air conditioning compressor M8 tightening torque 19 Nm TIGHTENING TORQUE SPECIFICATIONSRefrigerant line to connecting piece M8 tightening torque 19 Nm
Follow-up work
- Refer to INSTALLING THE THROTTLE BODY .
- Refer to PARTIALLY INSTALLING THE CHARGE AIR LINE .
- Refer to INSTALLING THE BRACKET FOR THE DME CONTROL UNIT .
- Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to EVACUATE AND CHARGE CONDITIONING .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
