Install front intake pipe

• Replace O-rings.

  Parts:  O-rings

• Feed in and correctly position the intake pipe (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Place the intake pipe (3) on the air conditioning compressor.
• Tighten down screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

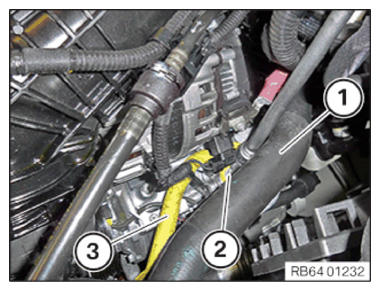

• Correctly position the coolant hose (1).
• Insert the coolant hose (1) into the holder (2) if applicable.
• Connect connectors (3) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1) to the alternator (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BRACKET FOR THE DME CONTROL UNIT .
• Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to EVACUATE AND CHARGE CONDITIONING .

• Replace O-rings.

  Parts:  O-rings

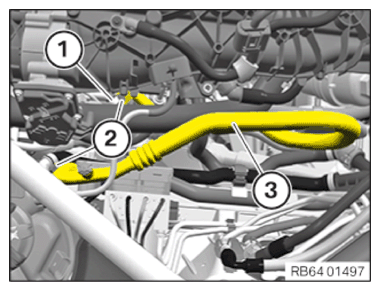

• Feed in and position intake pipe (3) correctly.
• Tighten the screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coolant hose (1) carefully and correctly as needed.

Follow-up work

• Refer to INSTALLING THE BRACKET FOR THE DME CONTROL UNIT .
• Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to EVACUATE AND CHARGE CONDITIONING .
